Description

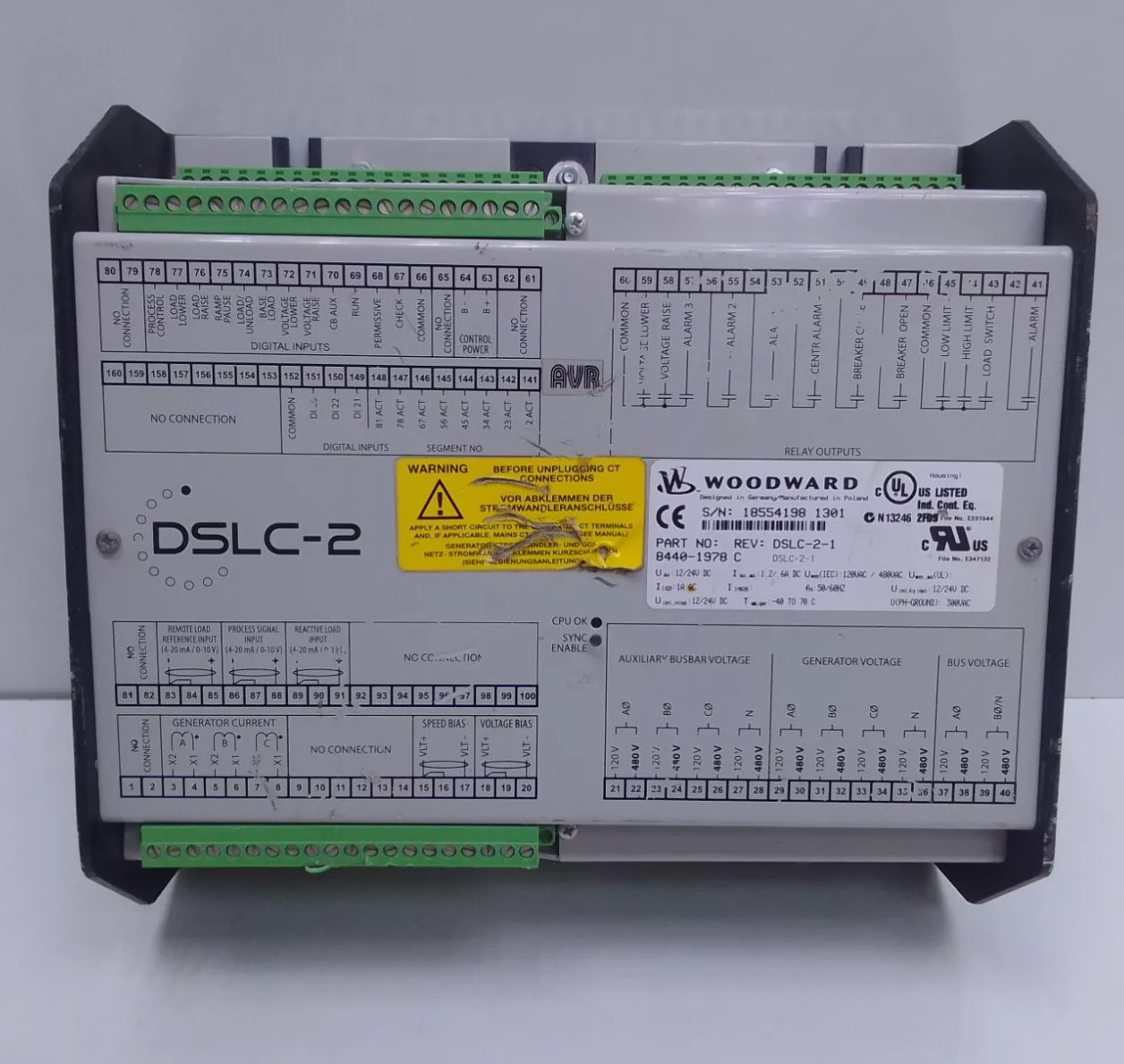

Woodward 8440-1978 Digital Sychronizer And Load Control Module
- The Woodward DSLC-2™ (Digital Synchronizer and Load Control) is a microprocessor-based synchronizer and load control designed for use on three-phase AC generators. The DSLC-2 combines synchronizer, load sensor, load control, dead bus closing system, VAR, power factor and process control, all in one powerful package. Applications allow up to 32 generators to be precisely paralleled and controlled. A dedicated Ethernet system provides seamless communications between DSLC-2 and MSLC-2 units. A second Ethernet port is provided for customer remote control and monitoring capability using Modbus TCP allowing easy DCS and PLC interfacing. Modbus RTU is available through a separate RS-485 port. A redundant Ethernet network is possible with the two Ethernet ports. Woodward used the original solid DSLC combined with an additional decade of application experience, to develop the new DSLC-2. The DSLC-2 excels in either simple generator or complex generator system applications. The DSLC-2/MSLC-2 combination provides multiple unit, segment, utility, and intertie breaker control for complex power systems.
- Woodward MSLC-2™ functions with the DSLC-2™ control to provide synchronization and load control across Utility and Intertie breakers. The MSLC-2/DSLC-2 combination operates over an Ethernet communication network to control simple or complex generator system applications. This combination, 32 DSLC-2’s and 16 MSLC-2’s, provide multiple unit, multiple segment, utility and intertie power management for complex power systems. Controls plant wide import/export levels while always providing bump-less load transfers with utility. The MSLC-2 control combines synchronization, dead bus closing, utility/intertie load sensor, baseload control, import/export control, VAR, power factor, and a master process control in one powerful package.
others woodward devices: Woodward – Fast Recambios
woodward-seg.cz/userfiles/katalog.pdf
